MELSEC iQ-F — PLC-side settings

MELSEC iQ-F — built-in Ethernet port (CPU module).

What you need

  • Configuration tool: GX Works3
  • Network: Align IP address, subnet mask, and default gateway with your network environment.
  • After configuration: Power cycle the PLC to apply the new parameters.

Example values used in this guide

Parameter Example value Notes
IP address 192.168.250.100 Adapt to your network
TCP port 1025 SLMP TCP
UDP port 1035 SLMP UDP

PLC-side settings

Screen: Unit parameters

Parameter Setting
IP Address 192.168.250.100 (example)
Subnet Mask Match your network
Default Gateway Match your network
Communication Data Code Binary

iQ-F does not have "Write Permission During RUN" or "Open Method Setting" in the unit parameters screen. Those are configured in the connection settings screen instead.

Screen: Connection settings

Parameter TCP UDP
Communication Method SLMP SLMP
Protocol TCP UDP
Port Number 1025 1035
Remote Device IP Address - Enter the IP of the connecting PC
Keep-Alive Enabled Disabled

DX/DY not valid for iQ-F

Use X and Y instead of DX and DY with the iQ-F profile.

Connecting with this library

Parameter Value
Canonical profile melsec:iq-f
Port (TCP) 1025
Port (UDP) 1035

Code example:

import asyncio

from slmp import SlmpConnectionOptions, open_and_connect, read_typed


async def main() -> None:
    options = SlmpConnectionOptions(host="192.168.250.100", port=1025, plc_profile="melsec:iq-f")
    async with await open_and_connect(options) as client:
        value = await read_typed(client, "D100", "U")
        print(f"D100={value}")


asyncio.run(main())

using PlcComm.Slmp;

var options = new SlmpConnectionOptions("192.168.250.100", SlmpPlcProfile.IqF) { Port = 1025 };
await using var client = await SlmpClientFactory.OpenAndConnectAsync(options);
var value = await client.ReadTypedAsync("D100", "U");
Console.WriteLine($"D100={value}");

Screenshots

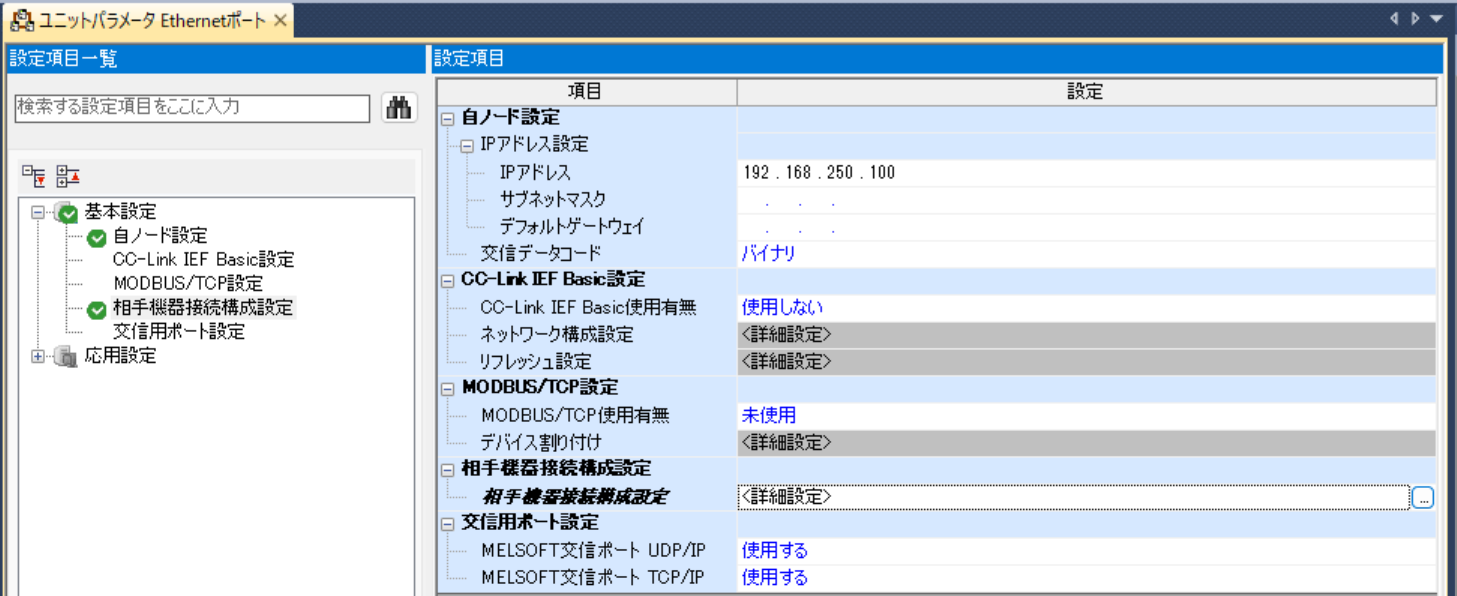

Unit parameters screen for the built-in Ethernet port Unit parameters screen for the built-in Ethernet port.

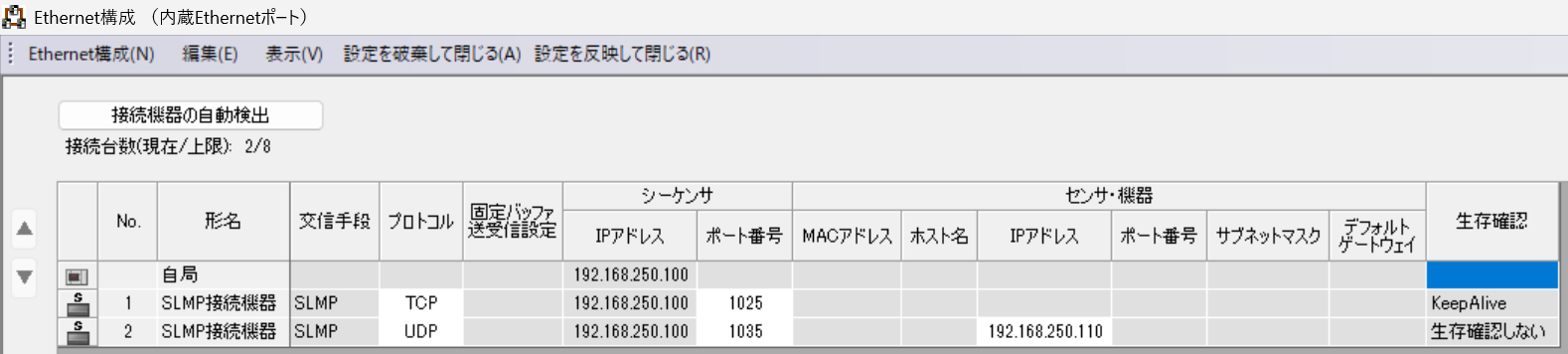

Connection settings for SLMP communication Connection settings for SLMP communication.
